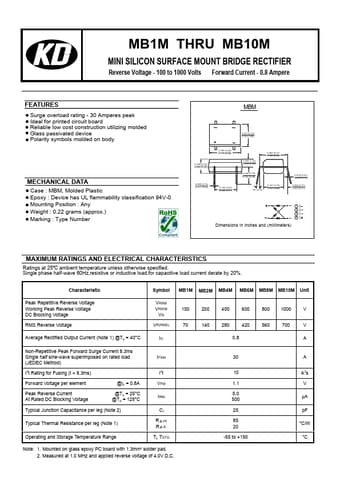

MB10M
FEATURES
- Surge overload rating
- 30 Amperes peak
- Ideal for printed circuit board
- Reliable low cost construction utilizing molded
- Glass passivated device
- Polarity symbols molded on body
MECHANICAL DATA
- Case : MBM, Molded Plastic
- Epoxy : Device has UL flammability classification 94V-0
- Mounting Position : Any
- Weight : 0.22 grams (approx.)
- Marking : Type Number
0.161 (4.10) 0.144 (3.65)
0.106 (2.70) 0.090 (2.30)
0.029 (0.74) 0.017 (0.43)
0.190 (4.83) 0.179 (4.55)
0.105 (2.67) 0.095 (2.41)
0.049 (1.24) 0.039 (0.99)
0.205 (5.21) 0.195 (4.95)
0.148 (3.75) 0.132 (3.35)
10° to 15°
0.147 (3.73) 0.137 (3.48)
0.016 (0.41) 0.006 (0.15)
0.028 (0.71) 0.020 (0.51)
1 2 3 4
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified....
