MC4148 - SMALL SIGNAL SWITCHING DIODE

MC4148 Description

MC4148 / MCL4448 SMALL SIGNAL SWITCHING DIODE .

MC4148 Features

* Silicon epitaxial planar diode
* Fast switching diodes
* 500mw power dissipation
* High temperature soldering guaranteed 250℃/10S at terminals MECHANICAL DATA Case: MICRO MELF, Glass Terminals: Solderable per MIL-STD-750, Method 2026 Polarity : Color band denotes cathode end Mounti

📥 Download Datasheet

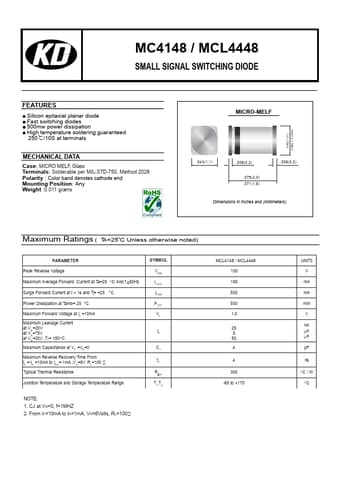

MC4148 Datasheet Preview — Preview of MC4148 PDF

Datasheet Details

Part number: MC4148
Manufacturer: KD
File Size: 853.19 KB
Datasheet: MC4148-KD.pdf
Description: SMALL SIGNAL SWITCHING DIODE
