SK215 - SCHOTTKY BARRIER RECTIFIER

SK215 Description

SK215 THRU SK220 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 150 to 200 Volts Forward Current - 2.0 Ampere .

SK215 Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

SK215 Applications

* Metal silicon junction,majority carrier conduction
* Low reverse leakage
* Built-in strain relief,ideal for automated placement
* High forward surge current capability
* High temperature soldering guaranteed: 250 C/10 seconds at terminals MECHANICAL DATA Case: JEDEC SMB(DO-214A

📥 Download Datasheet

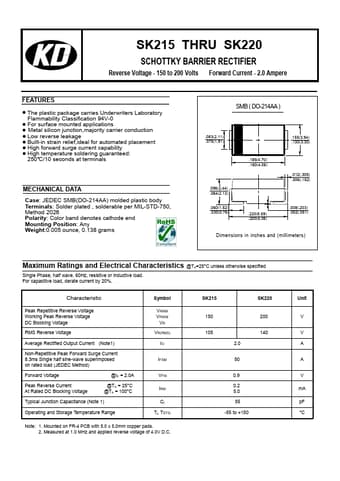

Preview of SK215 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SK215
Manufacturer
KD
File Size
588.85 KB
Datasheet
SK215-KD.pdf
Description
SCHOTTKY BARRIER RECTIFIER
