US1JF, US1AF SURFACE MOUNT ULTRA FAST RECTIFIER

US1JF Description

US1AF THRU US1MF SURFACE MOUNT ULTRA FAST RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere .

US1JF Features

* Glass Passivated Die Construction
* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

US1JF Applications

* Low reverse leakage
* Built-in strain relief,ideal for automated placement
* High forward surge current capability
* High temperature soldering guaranteed: 250 C/10 seconds at terminals MECHANICAL DATA Case: JEDEC SMAF molded plastic body over passivated chip Terminals: Solder plat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: US1JF, US1AF. Please refer to the document for exact specifications by model.

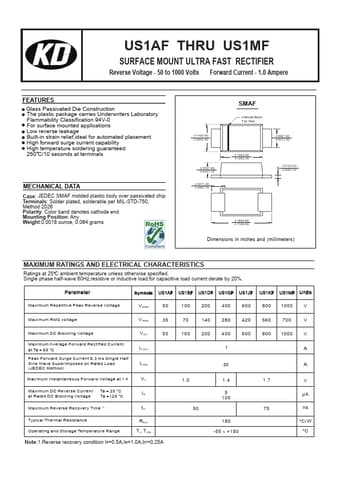

datasheet Preview Page 2

Datasheet Details

Part number
US1JF, US1AF
Manufacturer
KD
File Size
881.83 KB
Datasheet
US1AF-KD.pdf
Description
SURFACE MOUNT ULTRA FAST RECTIFIER
Note
This datasheet PDF includes multiple part numbers: US1JF, US1AF.
Please refer to the document for exact specifications by model.
