DTS-xx Transfer Switch

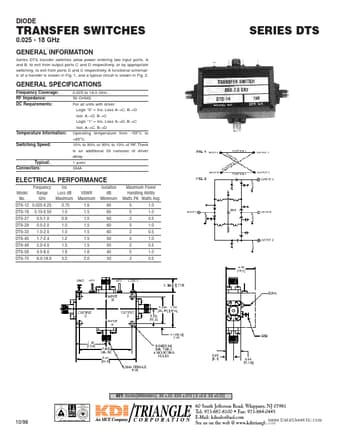

DIODE TRANSFER SWITCHES 0.025 - 18 GHz GENERAL INFORMATION Series DTS transfer switches allow power entering two input ports, A and B, to exit from output ports C and D respectively, or by appropriate switching, to exit from ports D and C respectively. A functional schematic of a transfer is shown in Fig. 1, and a typical circuit is shown in Fig. 2. SERIES DTS www.DataSheet4U.com GENERAL SPECIFICATIONS Frequency Coverage: RF Impedance: DC Requirements: 0.025 to 18.0 GHz. 50 OHMS. For all uni.

DTS-xx Datasheet (89.08 KB)

DTS-xx Datasheet Preview — Preview of DTS-xx PDF

Datasheet Details

Part number:

DTS-xx

Manufacturer:

KDI

File Size:

89.08 KB

Description:

Transfer switch.
