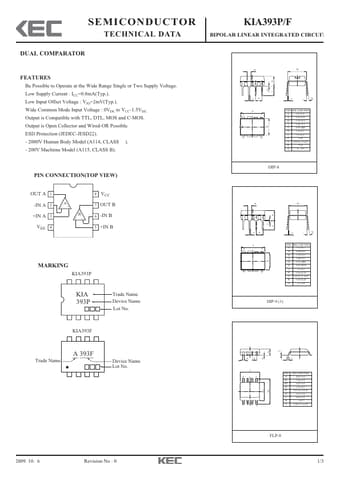

SEMICONDUCTOR
TECHNICAL DATA
KIA393P/F
BIPOLAR LINEAR INTEGRATED CIRCUIT
DUAL COMPARATOR
FEATURES Be Possible to Operate at the Wide Range Single or Two Supply Voltage. Low Supply Current : ICC=0.8mA(Typ.). Low Input Offset Voltage : VIO=2mV(Typ.). Wide Common Mode Input Voltage : 0VDC to VCC-1.5VDC. Output is Compatible with TTL, DTL, MOS and C-MOS. Output is Open Collector and Wired-OR Possible. ESD Protection (JEDEC-JESD22). - 2000V Human Body Model (A114, CLASS ). - 200V Machime Model (A115, CLASS B).
PIN CONNECTION(TOP VIEW)
DW
G LH
dP A 85
14
B
TQ
DIM MILLIMETERS A 9.6+_ 0.2 B 6.45+_ 0.2 D 1.52+_ 0.1 d 0.46+_ 0.1 G 0.50 MIN H 3.8+_ 0.3 L 3.3+_ 0.3 P 2.54 T 0.25+0.1/-0.05 W 7.
