B30A45VIC - SCHOTTKY BARRIER TYPE DIODE STACK

B30A45VIC Description

SEMICONDUCTOR TECHNICAL DATA B30A45VIC SCHOTTKY BARRIER TYPE DIODE STACK SWITCHING TYPE POWER SUPPLY APPLICATION.CONVERTER & CHOPPER APPLICATION.F.

B30A45VIC Features

* ᴌAverage Output Rectified Current : IO=30A (Tc=84ᴱ). ᴌRepetitive Peak Reverse Voltage : VRRM=45V. ᴌFast Reverse Recovery Time : trr=35ns. ᴌLow Peak Forward Voltage : 0.60V(Max. ) MAXIMUM RATING (Ta=25ᴱ) CHARACTERISTIC SYMBOL RATING Repetitive Peak Reverse Voltage Average Output Rectified Current (

📥 Download Datasheet

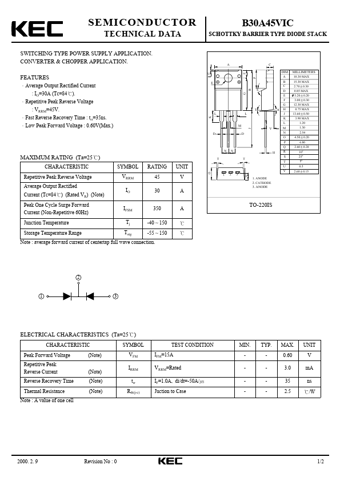

Preview of B30A45VIC PDF
datasheet Preview Page 2

Datasheet Details

Part number
B30A45VIC
Manufacturer
KEC
File Size
70.67 KB
Datasheet
B30A45VIC-KEC.pdf
Description
SCHOTTKY BARRIER TYPE DIODE STACK
