BC817W-16 EPITAXIAL PLANAR NPN TRANSISTOR

BC817W-16 Features

* Complementary to BC807W. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Emitter Current VCBO VCEO VEBO IC IE 50 45 5 500 -500 Collector Power Dissipation PC 100 Junction Temperature Tj 150 Storag

BC817W-KEC.pdf

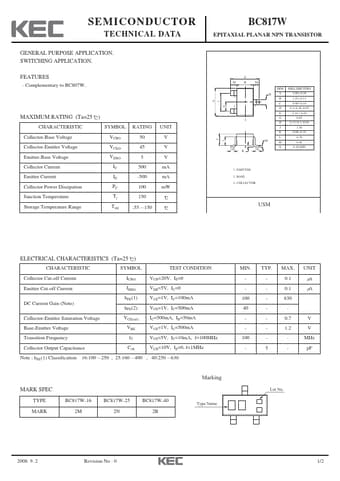

BC817W-16 Datasheet Preview — This datasheet PDF includes multiple part numbers: BC817W-16, BC817W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BC817W-16, BC817W

Manufacturer:

KEC

File Size:

34.00 KB

Description:

Epitaxial planar npn transistor.

Note:

This datasheet PDF includes multiple part numbers: BC817W-16, BC817W.
Please refer to the document for exact specifications by model.
