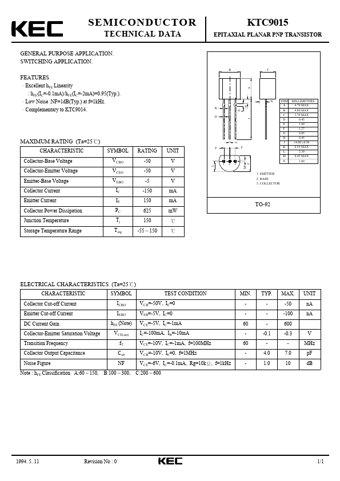

SEMICONDUCTOR
TECHNICAL DATA
GENERAL PURPOSE APPLICATION. SWITCHING APPLICATION.
FEATURES ᴌExcellent hFE Linearity
: hFE(IC=-0.1mA)/hFE(IC=-2mA)=0.95(Typ.). ᴌLow Noise :NF=1dB(Typ.) at f=1kHz. ᴌComplementary to KTC9014.
MAXIMUM RATING (Ta=25ᴱ) CHARACTERISTIC
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Emitter Current Collector Power Dissipation Junction Temperature Storage Temperature Range
SYMBOL VCBO VCEO VEBO IC IE PC Tj Tstg
RATING -50 -50 -5 -150 150 625 150
-55ᴕ150
UNIT V V V mA mA
mW ᴱ ᴱ
L M
C
KTC9015
EPITAXIAL PLANAR PNP TRANSISTOR
BC
JA
K
E G
D
H
FF
1 23
N DIM MILLIMETERS A 4.70 MAX B 4.80 MAX C 3.70 MAX D 0.45 E 1.00 F 1.27 G 0.85 H 0.45 J 14.00 +_0.50 K 0.55 MAX L 2.30 M 0.45 MAX N 1.00
1. EMITTER 2. BASE 3.
C9015 Datasheet
