KIA7217AP - 5.8W AUDIO POWER AMPLIFIER

Product Overview

KEC

📥 Download Datasheet

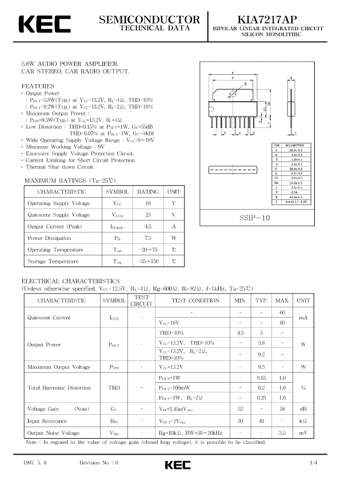

KIA7217AP 5.8W AUDIO POWER AMPLIFIER by KEC - Datasheet Preview — Datasheet preview – KIA7217AP

Datasheet Details

Part number	KIA7217AP
Manufacturer	KEC
File Size	171.77 KB
Description	5.8W AUDIO POWER AMPLIFIER
Datasheet	KIA7217AP Datasheet
Additional preview pages of the KIA7217AP datasheet.

Product details

Features

Output Power : PouT=5.8W(Typ. ) at VCc=13.2V, RL=4£, THD=10% : PouT=9.2W(Typ. ) at VCc=13.2V, RL=2£, THD=10%.
Maximum Output Power : : PoM=9.5W(Typ. ) at VCc=13.2V, RL=4£.
Low Distortion : THD=0.15% at P0UT=1W, Gv=55dB THD=0.07% at POUT=1W, Gv=44dB.
Wide Operating Supply Voltage Range : Vcc=9~18V.
Minimum Working Voltage : 9V.
Excessive Supply Voltage Protection Circuit.
Current Limiting for Short Circuit Protection.
Thermal Shut-down Circuit.
