KIA7815APC, KIA7805APC - THREE TERMINAL POSITIVE VOLTAGE REGULATORS

KIA7815APC Description

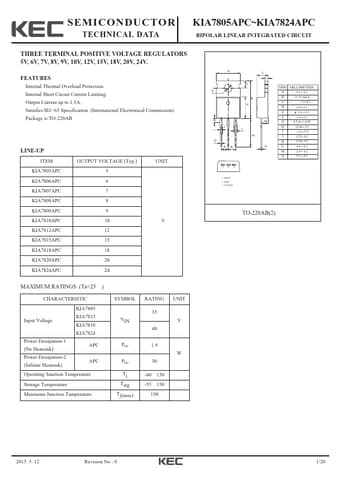

SEMICONDUCTOR TECHNICAL DATA KIA7805APC~KIA7824APC BIPOLAR LINEAR INTEGRATED CIRCUIT THREE TERMINAL POSITIVE VOLTAGE REGULATORS 5V, 6V, 7V, 8V, 9V, .

KIA7815APC Features

* Internal Thermal Overload Protection. Internal Short Circuit Current Limiting. Output Current up to 1.5A. Satisfies IEC-65 Specification. (International Electronical Commission). Package is TO-220AB LINE-UP ITEM KIA7805APC KIA7806APC KIA7807APC KIA7808APC KIA7809APC KIA7810APC KIA7812APC KIA7815APC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KIA7815APC, KIA7805APC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KIA7815APC, KIA7805APC
Manufacturer
KEC
File Size
446.42 KB
Datasheet
KIA7805APC-KEC.pdf
Description
THREE TERMINAL POSITIVE VOLTAGE REGULATORS
Note
This datasheet PDF includes multiple part numbers: KIA7815APC, KIA7805APC.
Please refer to the document for exact specifications by model.
