KTC3207T - TRIPLE DIFFUSED NPN TRANSISTOR

KTC3207T Description

SEMICONDUCTOR TECHNICAL DATA HIGH VOLTAGE SWITCHING APPLICATION.COLOR TV HORIZONTAL DRIVER APPLICATION.COLOR TV CHROMA OUTPUT APPLICATION..

KTC3207T Features

* High Voltage : V(BR)CEO=300V Small Collector Output Capacitance : Cob=3.0pF(Typ. ) Complementary to KTA1073T. MAXIMUM RATINGS (Ta=25 ) CHARACTERISTIC SYMBOL RATING Collector-Base Voltage VCBO 300 Collector-Emitter Voltage VCEO 300 Emitter-Base Voltage VEBO 6 Collector Current IC 100 Ba

📥 Download Datasheet

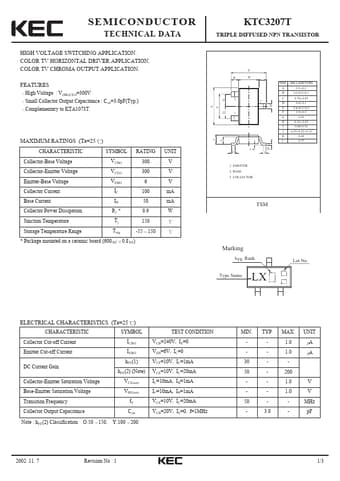

Preview of KTC3207T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KTC3207T
Manufacturer
KEC
File Size
400.67 KB
Datasheet
KTC3207T-KEC.pdf
Description
TRIPLE DIFFUSED NPN TRANSISTOR
