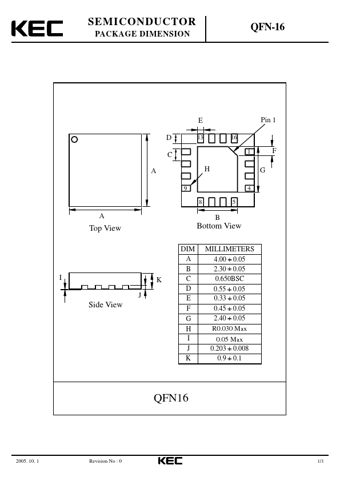

SEMICONDUCTOR PACKAGE DIMENSION QFN-16 E D C A 9 8 5 13 16 Pin 1 1 F G H 4 A B Top View http://www.DataSheet4U.net/ Bottom View DIM A B C D E F G H I J K MILLIMETERS _ 0.05 4.00 + _ 0.05 2.30 + 0.650BSC _ 0.05 0.55 + _ 0.05 0.33 + _ 0.05 0.45 + _ 0.05 2.40 + R0.030 Max 0.05 Max _ 0.008 0.203 + _ 0.1 0.9 + I J K Side View QFN16 2005. 10. 1 Revision No : 0 1/1 datasheet pdf - http://www.DataSheet4U.net/ .

QFN-16 Datasheet (62.17 KB)

QFN-16 Datasheet Preview — Preview of QFN-16 PDF

Datasheet Details

Part number:

QFN-16

Manufacturer:

KEC

File Size:

62.17 KB

Description:

Qfn-16.
