Z02W5.6V, Z02W2.2V ZENER DIODE

Z02W5.6V Description

SEMICONDUCTOR TECHNICAL DATA CONSTANT VOLTAGE REGULATION APPLICATION.REFERENCE VOLTAGE APPLICATION..

Z02W5.6V Features

* Small Package : SOT-23 Normal Voltage Tolerance About 2.5%. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Power Dissipation Junction Temperature PD Tj Storage Temperature Range Tstg RATING 200 150 -55 150 UNIT mW Z02W2.2V~36V ZENER DIODE SILICON EPITAXIAL PLANAR DIODE E L BL DIM MILLIME

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: Z02W5.6V, Z02W2.2V. Please refer to the document for exact specifications by model.

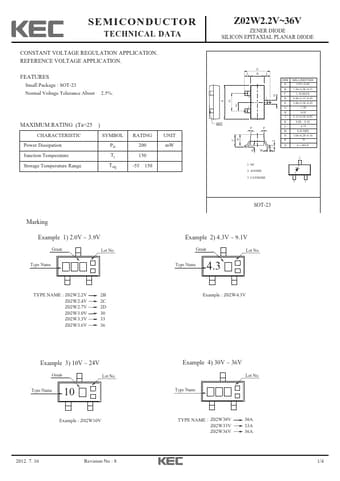

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Z02W5.6V, Z02W2.2V
Manufacturer
KEC
File Size
356.76 KB
Datasheet
Z02W2.2V-KEC.pdf
Description
ZENER DIODE
Note
This datasheet PDF includes multiple part numbers: Z02W5.6V, Z02W2.2V.
Please refer to the document for exact specifications by model.
