EA2 - Miniature Signal Relays

EA2 Description

Miniature Signal Relays EA2/EB2 Series Overview The KEMET EA2/EB2 miniature signal relays offer a compact case size in a flat package.Minimal board .

EA2 Applications

* Electronic switching systems
* PBX
* Terminal equipment
* Telephone systems Benefits
* Low power consumption (< 200 mW)
* Compact and lightweight
* Low magnetic interference
* Breakdown voltage: 1,000 VAC (1,500 VAC surge), FC

📥 Download Datasheet

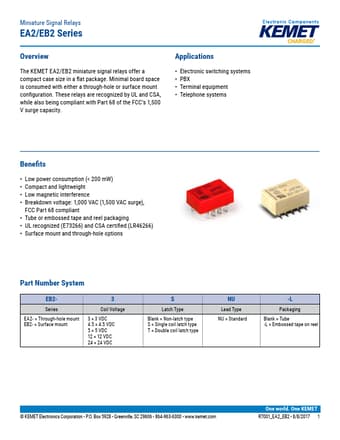

Preview of EA2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EA2
Manufacturer
KEMET
File Size
1.12 MB
Datasheet
EA2-KEMET.pdf
Description
Miniature Signal Relays
