KSD301-V, KSD301, DISC BIMETAL THERMOSTAT

1/2” DISC BIMETAL THERMOSTAT KSD301 series * .
KSD301 series snap-action bimetal thermostat is a kind of miniature hermetically sealed bimetal thermostat (1/2" disc).

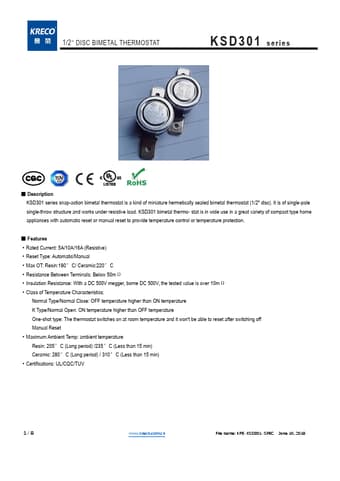

datasheet Preview Page 1 from Datasheet4u.com

KSD301-KERCO.pdf

KSD301-V Datasheet Preview — This datasheet PDF includes multiple part numbers: KSD301-V, KSD301. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KSD301-V, KSD301

Manufacturer:

KERCO

File Size:

1.12 MB

Description:

DISC BIMETAL THERMOSTAT

Note:

This datasheet PDF includes multiple part numbers: KSD301-V, KSD301.
Please refer to the document for exact specifications by model.

Features

* Rated Current: 5A/10A/16A (Resistive)
* Reset Type: Automatic/Manual
* Max OT: Resin:180°C/ Ceramic:220°C
* Resistance Between Terminals: Below 50mΩ
* Insulation Resistance: With a DC 500V megger, borne DC 500V, the tested value is over 10mΩ
* Class of Temperature Characteristics

Applications

* Coffee maker
* Toaster
* Microwave oven
* Heating
* Portable refrigerator
* Water dispenser
* Electric pad
* Portable freezer 2/8 www. kreco. com. cn File name: KRE-KSD301-SPEC June 10, 2019 1/2” DISC BIMETAL THERMOSTAT KSD301 series
* Code System KSD301 -X /XXXX- X
