MM3Z27, MM3Z2V4 - Surface Mount Zener Diodes

📥 Download Datasheet

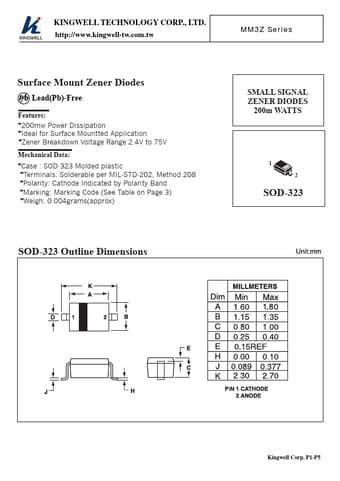

MM3Z27 Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z27, MM3Z2V4. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MM3Z27, MM3Z2V4
Manufacturer: KINGWELL
File Size: 557.53 KB
Datasheet: MM3Z2V4-KINGWELL.pdf
Description: Surface Mount Zener Diodes
Note: This datasheet PDF includes multiple part numbers: MM3Z27, MM3Z2V4.
Please refer to the document for exact specifications by model.

MM3Z27 Product details

Features

200mw Power Dissipation.
Ideal for Surface Mountted Application.
Zener Breakdown Voltage Range 2.4V to 75V Mechanical Data:.
Case : SOD-323 Molded plastic.
Terminals: Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Indicated by Polarity Band.
Marking: Marking Code (See Table on Page 3).
Weigh: 0.004grams(approx) SMALL SIGNAL ZENER DIODES 200m WATTS 1 2 SOD-323 SOD-323 Outline Dimensions Kingwell Corp. P1-P5.
