1N950 Datasheet - KNOX SEMICONDUCTOR

1N950 GENERAL PURPOSE ABRUPT VARACTOR DIODES

KNOX SEMICONDUCTOR, INC. GENERAL PURPOSE ABRUPT VARACTOR DIODES 1N950 - 1N956 TYPE NUMBER 1N950 1N951 1N952 1N953 1N954 1N955 1N956 CAPACITANCE @ - 4 Vdc 35 50 70 100 35 50 70 CAPACITANCE RANGE 0.1 Vdc to MWV 6-88 12-120 20-270 46-240 14-88 22-120 33-120 QUALITY FACTOR Q @ - 4 Vdc, f = 50 MHz MIN TYP 7 39 7 36 7 30 7 23 7 20 7 20 7 20 REVERSE VOLTAGE @ 100 µA 150 100 75 30 30 30 30 MAX WORKING V OLTAGE 130 80 60 25 25 25 25 Package Style DC Power Dissipation Operating Temperature (Topr) .

1N950 Datasheet (6.39 KB)

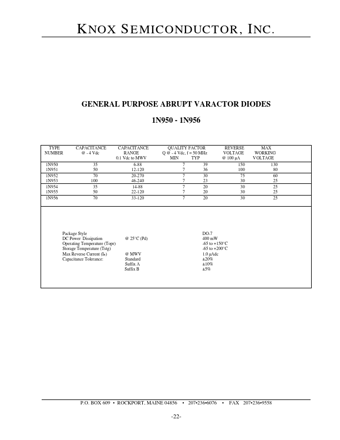

Preview of 1N950 PDF

Datasheet Details

Part number:

1N950

Manufacturer:

KNOX SEMICONDUCTOR

File Size:

6.39 KB

Description:

General purpose abrupt varactor diodes.
