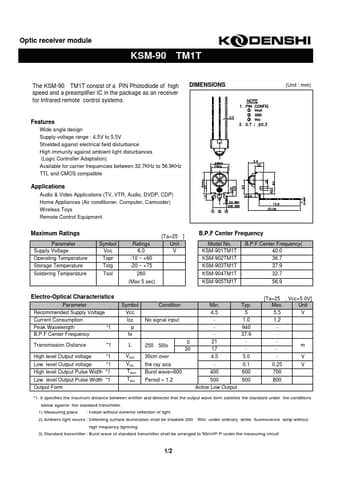

KSM-904TM1T Optic receiver module

1) Transmitter(IRED) drive current : IFP = 300mAP-P ~ 600mAP-P 2) R-C Decoupling Filter with Lower Cut-off Frequency : R=100 *Ù , C=47 *Þ : 10k *Ù over ¢¡ fc = 1/2 *ð RC = 33.9Hz 3) External pull-up resistor(optional) Rp micom GND Vcc 2/2 .

KSM-904TM1T Features

* ¤ýWide angle design ¤ýSupply-voltage range : 4.5V to 5.5V ¤ýShielded against electrical field disturbance ¤ýHigh immunity against ambient light disturbances (Logic Controller Adaptation) ¤ýAvailable for carrier frequencies between 32.7KHz to 56.9KHz ¤ýTTL and CMOS compatible Applications ¤ýAudio &
