KK4013B Datasheet - KODENSHI KOREA

KK4013B Dual D Flip-Flop

www.DataSheet4U.com TECHNICAL DATA KK4013B Dual D Flip-Flop The KK4013B consists of two identical, independent data-type flipflops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting o.

KK4013B_KODENSHIKOREA.pdf

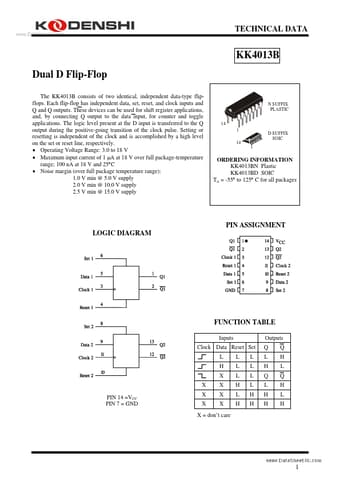

Preview of KK4013B PDF
KK4013B Datasheet Preview Page 2 KK4013B Datasheet Preview Page 3

Datasheet Details

Part number:

KK4013B

Manufacturer:

KODENSHI KOREA

File Size:

447.53 KB

Description:

Dual d flip-flop.
