KK4520B Datasheet - KODENSHI KOREA

KK4520B Dual Up-Counter High-Voltage Silicon-Gate CMOS

www.DataSheet4U.com TECHNICAL DATA KK4520B Dual Up-Counter High-Voltage Silicon-Gate CMOS The KK4520B Dual Binary Up-Counter consists two identical, internally synchronous 4-stage counters. The counter stages are D-type flip-flops having interchangeable CLOCK and ENABLE lines for incrementing on either the positive-going or negative-going transition. For single-unit operation the ENABLE input is maintained high and the counter advances on each positive-going transition of the CLOCK. The count.

KK4520B Datasheet (505.79 KB)

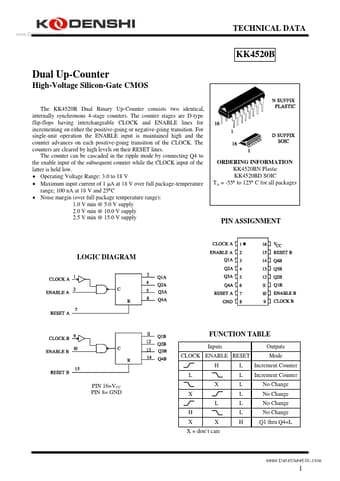

Preview of KK4520B PDF
KK4520B Datasheet Preview Page 2 KK4520B Datasheet Preview Page 3

Datasheet Details

Part number:

KK4520B

Manufacturer:

KODENSHI KOREA

File Size:

505.79 KB

Description:

Dual up-counter high-voltage silicon-gate cmos.
