KK74AC132 Datasheet - KODENSHI KOREA

KK74AC132 - Quad 2-Input NAND Gate

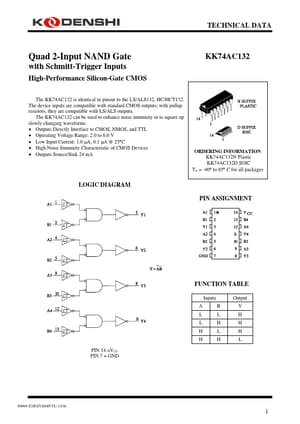

TECHNICAL DATA www.DataSheet4U.com Quad 2-Input NAND Gate with Schmitt-Trigger Inputs High-Performance Silicon-Gate CMOS The KK74AC132 is identical in pinout to the LS/ALS132, HC/HCT132.

The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALS outputs.

The KK74AC132 can be used to enhance noise immunity or to square up slowly changing waveforms.

Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Ran

KK74AC132_KODENSHIKOREA.pdf

Preview of KK74AC132 PDF
KK74AC132 Datasheet Preview Page 2 KK74AC132 Datasheet Preview Page 3

Datasheet Details

Part number:

KK74AC132

Manufacturer:

KODENSHI KOREA

File Size:

369.87 KB

Description:

Quad 2-input nand gate.
