KK74HC00A Datasheet - KODENSHI KOREA

KK74HC00A - Quad 2-Input NAND Gate

TECHNICAL DATA KK74HC00A Quad 2-Input NAND Gate The KK74HC00A is identical in pinout to the LS/ALS00.

The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs.

Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 V Low Input Current: 1.0 µA High Noise Immunity Characteristic of CMOS Devices ORDERING INFORMATION KK74HC00AN Plastic KK74HC00AD SOIC TA = -5

KK74HC00A_KODENSHIKOREA.pdf

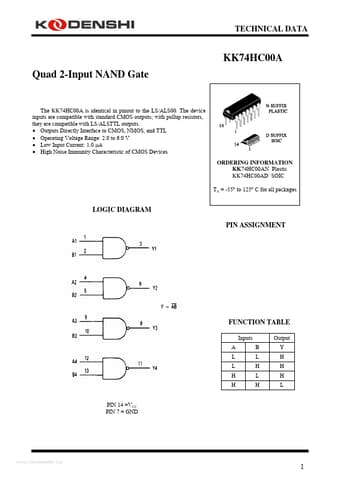

Preview of KK74HC00A PDF
KK74HC00A Datasheet Preview Page 2 KK74HC00A Datasheet Preview Page 3

Datasheet Details

Part number:

KK74HC00A

Manufacturer:

KODENSHI KOREA

File Size:

346.09 KB

Description:

Quad 2-input nand gate.
