SUF2001 Datasheet, Msfet, KODENSHI KOREA

SUF2001 Features

  • Msfet
  • Low VGS(th): VGS(th)=1.0~3.0V
  • Small footprint due to small package
  • Low RGDS(on): N-ch, RDS(on)=24mΩ (@ VGS=10V, ID=2.9A) P-ch, RDS(on)=66mΩ (@ VGS=-10V, ID

PDF File Details

Part number:

SUF2001

Manufacturer:

KODENSHI KOREA

File Size:

569.31kb

Download:

📄 Datasheet

Description:

Dual n-and p-channel trench msfet.

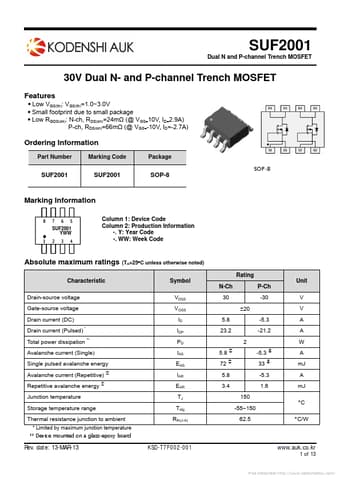

Datasheet Preview: SUF2001 📥 Download PDF (569.31kb)
Page 2 of SUF2001 Page 3 of SUF2001
