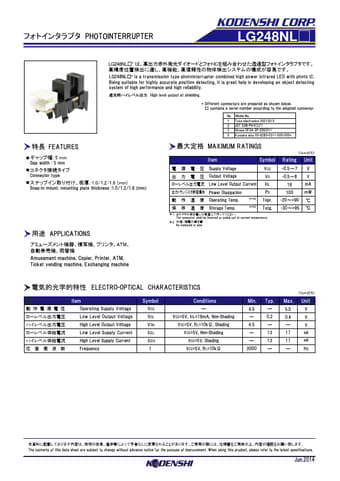

LG248NL PHOTOINTERRUPTER

PHOTOINTERRUPTER LG248NL LG248NL 、IC。、、。 LG248NL is a transmission type photointerrupter combined high power infrared LED with photo IC. Being suitable for highly accurate position detecting, it is great help in developing an object detecting system of high performance and high reliability. 　High level output at shielding Different connectors are prepared as shown below. contains a serial number according to the adopted connector. No. Model No. 1 T.

LG248NL Features

* ：5 mm Gap width : 5 mm

* Connector type

* 、：1.0/1.2/1.6 (mm) Snap-in mount, mounting plate thickness :1.0/1.2/1.6 (mm) APPLICATIONS MAXIMUM RATINGS Item Symbol （Ta＝25℃） Rating Unit Supply Voltage Output Voltage Low Level Output Current VCC VO IOL -0.5～7 -0.5～8 16 V V
