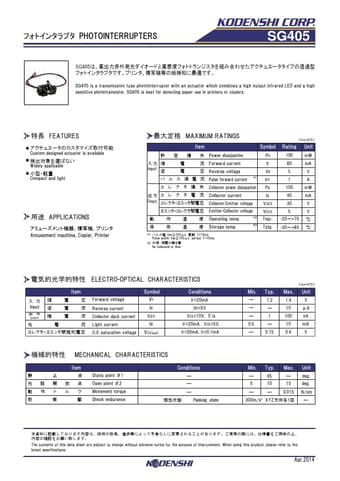

    PHOTOINTERRUPTERS SG405 SG405、 。、。 SG405 is a transmission type photointerrupter with an actuator which combines a high output infrared LED and a high sensitive phototransistor. SG405 is best for detecting paper use in printers or copiers. FEATURES ● Custom designed actuator is available ● Widely applicable ● Compact and light APPLICATIONS 、、 Amusement machine, Copier, Printer MAXIMUM RATINGS Item （Ta＝25℃） Symbol Rating Unit Power dissipation Forward current Input Reverse voltage Pulse forward current *1 Collector power dissipation PD IF VR IFP Pc 100 mW 60 mA 5V 1A 100 mW Collector current Output - Collector-Emitter voltage Ic VCEO 40 mA 30 V - Emitter-Collector voltage Operating temp. *2 Storage temp.
