KCD-A300-QB Datasheet - KOPIN

KCD-A300-QB, Display Driver

KOPIN General .
The A300 is a driver for Kopin’s CyberDisplay® 300M LV monochrome display.

datasheet Preview Page 1 from Datasheet4u.com

KCD-A300-QB_KOPIN.pdf

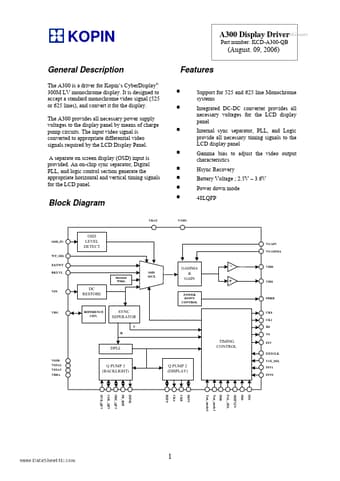

KCD-A300-QB Datasheet Preview — Preview of KCD-A300-QB PDF

Datasheet Details

Part number:

KCD-A300-QB

Manufacturer:

KOPIN

File Size:

467.07 KB

Description:

Display Driver

Features

* V33IN Support for 525 and 625 line Monochrome systems Integrated DC-DC converter provides all necessary voltages for the LCD display panel Internal sync separator, PLL, and Logic provide all necessary timing signals to the LCD display panel Gamma bia

Applications

* However, 1X inversion may be accomplished when the V1X_SEL pin is tied high. Table 2: Inversion Control INV0=low, INV0=low, INV0=high, INV0=high, INV1=low INV1=high INV1=low INV1=high Frame mode Pixel mode Column mode Row mode Fig. 1: Horizontal Video Timing 0 Time(tH /384) 4 8 12 16 20 24
