VC-TCXO-214C Datasheet - KSS

VC-TCXO-214C Crystal Oscillator

Crystal Oscillator (VC-)TCXO-214C ¡VC-TCXO for Personal Cellular Phone. ¡Because it is leadless type, automatic mounting is possible. ¡Ultra small size. (3.2×2.5×1.05mm) Micro scopic size ¡Reflow Soldering. ¡Low power consumption. Original Size Item Type VC-TCXO-214C Supply Voltage +3.0V±5%(2.5V MIN.) Frequency Range 13~15MHz 15~30MHz Standard Frequency 13.0 14.4MHz 16 16.8 19.2 19.68 19.8 26MHz Load Frequency Stability Frequency Deviation 10kΩ//10pF ±2.0×10 6/.

VC-TCXO-214C-KSS.pdf

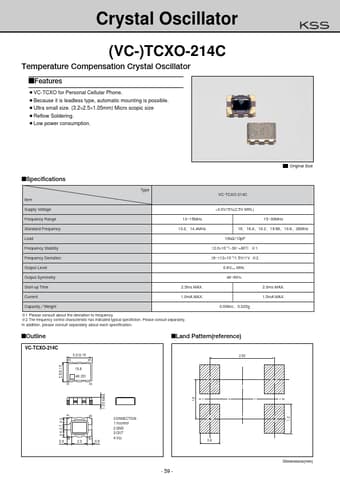

Preview of VC-TCXO-214C PDF

Datasheet Details

Part number:

VC-TCXO-214C

Manufacturer:

KSS

File Size:

33.51 KB

Description:

Crystal oscillator.
