KL5KUSB101

USB to Ethernet Controller

KL5KUSB101 Features

* Advanced 16 Bit processor for USB transaction processing and control data processing USB interface ver. 1.0/1.1 compliant Transceivers and SIE (Serial Interface Engine) Internal Clock Generation Utilizes low cost external crystal

KL5KUSB101 General Description

The Kawasaki KL5KUSB101 Controller is a unique single chip solution to interface peripheral devices to the Universal Serial Bus (USB) and Ethernet. The KL5KUSB101 has been specifically designed to provide a simple solution to communicate with Ethernet applications as well as other USB peripheral dev.

KL5KUSB101 Datasheet (327.68 KB)

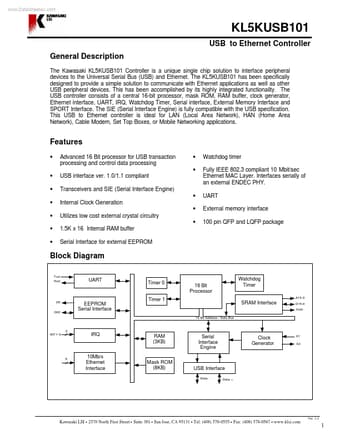

Preview of KL5KUSB101 PDF

Datasheet Details

Part number:

KL5KUSB101

Manufacturer:

Kawasaki

File Size:

327.68 KB

Description:

Usb to ethernet controller.
