C0805C474K5RAC Datasheet (Kemet Corporation) - Surface Mount Ceramic Chip Capacitors

C0805C474K5RAC, Surface Mount Ceramic Chip Capacitors

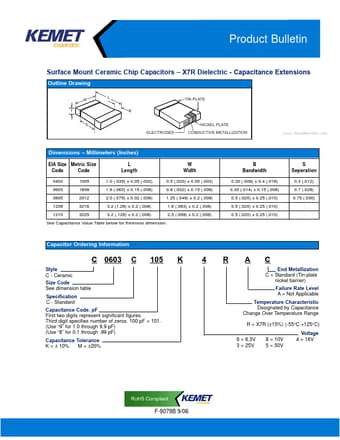

Product Bulletin Surface Mount Ceramic Chip Capacitors X7R Dielectric - Capacitance Extensions Outline Drawing W T S ELECTRODES L B NICKEL PLATE CONDUCTIVE METALLIZATION www.DataSheet4U.com TIN PLATE Dimensions Millimeters (Inches) EIA Size Metric Size Code Code 0402 0603 0805 1206 1210 1005 1608 2012 3216 3225 L Length 1.0 (.039) ± 0.05 (.002) 1.6 (.063) ± 0.15 (.006) 2.0 (.079) ± 0.02 (.008) 3.2 (1.26) ± 0.2 (.008) 3.2 (.126) ± 0.2 (.008) W Width 0.5 (.020) ± 0.05 (.002)
