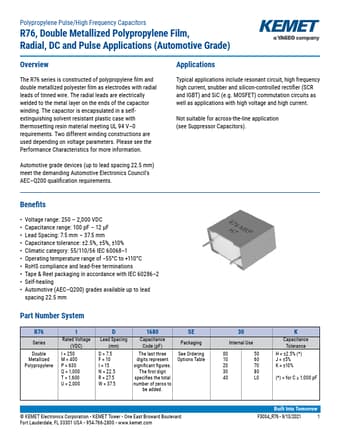

R76ID2120--4-- Datasheet - Kemet Corporation

R76ID2120--4-- Polypropylene Capacitor

Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Overview The R76 series is constructed of polypropylene film and double metallized polyester film as electrodes with radial leads of tinned wire. The radial leads are electrically welded to the metal layer on the ends of the capacitor winding. The capacitor is encapsulated in a selfextinguishing solvent resistant plastic case with thermosetting resin mate.

R76ID2120--4-- Datasheet (1.31 MB)
