CDR01xxxxxx - Ceramic Chip

Download the CDR01xxxxxx datasheet PDF. This datasheet also covers the CDR31BP220BFWP variant, as both devices belong to the same ceramic chip family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • (4)C CDR06BP682B(3)W(4) 8,200 J,K C2225P822(3)1G(4)C CDR06BP822B(3)W(4) 10,000 J,K C2225P103(3)1G(4)C CDR06BP103B(3)W(4) 50 Volt.
  • C2225 SIZE (.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CDR31BP220BFWP_KemetElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CDR01xxxxxx
Manufacturer Kemet Electronics
File Size 238.51 KB
Description Ceramic Chip
Datasheet download datasheet CDR01xxxxxx Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CDR01xxxxxx Ceramic Chip Metuchen Capacitors
CDR01xxxxxx Multilayer Ceramic Chip Capacitor Vishay Intertechnology
CDR01 Multilayer Ceramic Chip Capacitor Vishay
CDR01B-121B Multilayer Ceramic Chip Capacitor Vishay Intertechnology
CDR01B-151B Multilayer Ceramic Chip Capacitor Vishay Intertechnology

Other Datasheets by Kemet Electronics

Part Number Description
CDR02xxxxxx Ceramic Chip
CDR03xxxxxx Ceramic Chip
CDR04xxxxxx Ceramic Chip
CDR05xxxxxx Ceramic Chip
CDR06xxxxxx Ceramic Chip

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

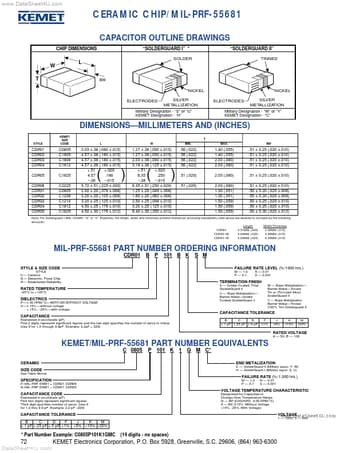

www.DataSheet4U.com CERAMIC CHIP/MIL-PRF-55681 CAPACITOR OUTLINE DRAWINGS CHIP DIMENSIONS “SOLDERGUARD I” * SOLDER “SOLDERGUARD II” TINNED W T L BW NICKEL ELECTRODES SILVER METALLIZATION ELECTRODES NICKEL SILVER METALLIZATION Military Designation - “S” or “U” KEMET Designation - “H” Military Designation - “W” or “Y” KEMET Designation - “C” DIMENSIONS—MILLIMETERS AND (INCHES) STYLE KEMET SIZE CODE T L W MIN. MAX. BW CDR01 CDR02 CDR03 CDR04 CDR05 CDR06 CDR31 CDR32 CDR33 CDR34 CDR35 C0805 C1805 C1808 C1812 C1825 C2225 C0805 C1206 C1210 C1812 C1825 2.03 ±.38 (.080 ±.015) 4.57 ±.38 (.180 ±.015) 4.57 ±.38 (.180 ±.015) 4.57 ±.38 (.180 ±.015) +.51 +.020 4.57 .180 –.38 –.015 5.72 ±.51 (.225 ±.020) 2.00 ±.20 (.078 ±.008) 3.20 ±.20 (.125 ±.008) 3.20 ±.25 (.125 ±.010) 4.50 ±.25 (.176 ±.
