C0603C104K5RACTU - Capacitors

Datasheet Summary

Features

  • 0603 SMD, MLCC, Temperature Stable, Class II Temperature Stable, Class II RoHS: Yes Termination: Tin Marking: No Failure Rate: Miscellaneous: N/A Note: Referee time for X7R dielectric for this part number is 48 hours Specifications Capacitance: 0.1 uF Capacitance Tolerance: Voltage DC: Temperature Range: Temperature Coefficient: Dissipation Factor: Aging Rate: Insulation Resistance: Dielectric Strength: 10% 50 VDC -55/+125C X7R 2.5% 3% Loss/Decade Hour 5 GOhms 125 V Statements of sui.

📥 Download Datasheet

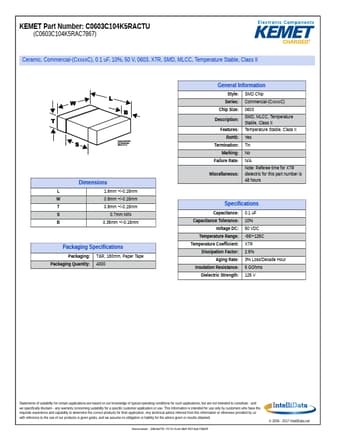

Datasheet preview – C0603C104K5RACTU

Datasheet Details

Part number C0603C104K5RACTU
Manufacturer Kemet
File Size 63.90 KB
Description Capacitors
Datasheet download datasheet C0603C104K5RACTU Datasheet
Additional preview pages of the C0603C104K5RACTU datasheet.

📁 Similar Datasheet

Other Datasheets by Kemet

Full PDF Text Transcription

Click to expand full text
KEMET Part Number: C0603C104K5RACTU (C0603C104K5RAC7867) Ceramic, Commercial-(CxxxxC), 0.1 uF, 10%, 50 V, 0603, X7R, SMD, MLCC, Temperature Stable, Class II Dimensions L 1.6mm +/-0.15mm W 0.8mm +/-0.15mm T 0.8mm +/-0.15mm S 0.7mm MIN B 0.35mm +/-0.15mm Packaging Specifications Packaging: T&R, 180mm, Paper Tape Packaging Quantity: 4000 General Information Style: SMD Chip Series: Commercial-(CxxxxC) Chip Size: Description: Features: 0603 SMD, MLCC, Temperature Stable, Class II Temperature Stable, Class II RoHS: Yes Termination: Tin Marking: No Failure Rate: Miscellaneous: N/A Note: Referee time for X7R dielectric for this part number is 48 hours Specifications Capacitance: 0.
