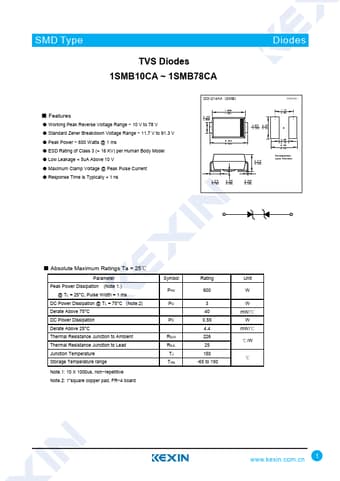

1SMB15CA, 1SMB10CA - TVS Diodes

Kexin

Datasheet Details

Part number	1SMB15CA, 1SMB10CA
Manufacturer	Kexin
File Size	1.15 MB
Description	TVS Diodes
Datasheet	1SMB10CA-Kexin.pdf
Note	This datasheet PDF includes multiple part numbers: 1SMB15CA, 1SMB10CA. Please refer to the document for exact specifications by model.

s.
Working Peak Reverse Voltage Range.
10 V to 78 V.
Standard Zener Breakdown Voltage Range.
11.7 V to 91.3 V.
Peak Power.
600 Watts @ 1 ms.
ESD Rating of Class 3 (> 16 KV) per Human Body Model.
Low Leakage < 5uA Above 10 V.
Maximum Clamp Voltage @ Peak Pulse Current.
Response Time is Typically < 1 ns DO-214AA (SMB) 2.108 1.905 2 4.699 4.064 5.588 5.080 Unit:mm 4.12 3.92 3.937 2.30 1 3.302 2.10 2.348 2.108 2.65 2.45 5.59 5.39.
