2SC4520 - NPN Epitaxial Planar Silicon Transistor

Name: 2SC4520
SKU: 2SC4520-742155

Kexin

The 2SC4520 by Kexin is a NPN Epitaxial Planar Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SC4520
Manufacturer	Kexin
File Size	75.09 KB
Description	NPN Epitaxial Planar Silicon Transistor
Datasheet	2SC4520_Kexin.pdf

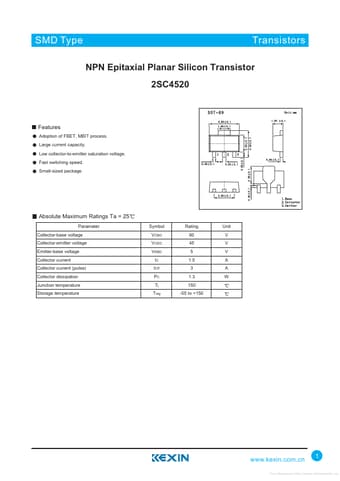

Additional preview pages of the 2SC4520 datasheet.

Adoption of FBET, MBIT process. Large current capacity. Low collector-to-emitter saturation voltage. Fast switching speed. Small-sized package. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Rating 60 45 5 1.5 3 1.3 150 -55 to +150 Unit V V V A A W www. kexin. com. cn 1 Free Datasheet.
