BZT52B4V3 - Zener Diodes

Product Overview

Kexin

📥 Download Datasheet

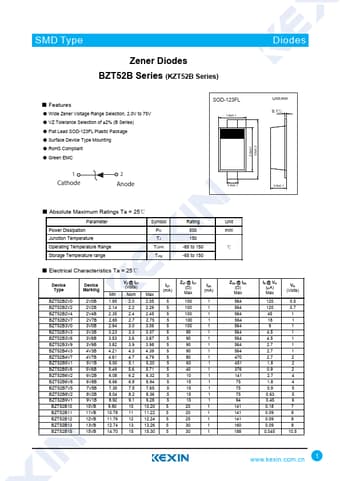

BZT52B4V3 Zener Diodes by Kexin - Datasheet Preview — Datasheet preview – BZT52B4V3

Datasheet Details

Part number	BZT52B4V3
Manufacturer	Kexin
File Size	1.06 MB
Description	Zener Diodes
Datasheet	BZT52B4V3 Datasheet
Note	This datasheet PDF includes multiple part numbers: BZT52B4V3, BZT52B2V0. Please refer to the document for exact specifications by model.
Additional preview pages of the BZT52B4V3 datasheet.

Product details

Features

s.
Wide Zener Voltage Range Selection, 2.0V to 75V.
VZ Tolerance Selection of ±2% (B Series).
Flat Lead SOD-123FL Plastic Package.
Surface Device Type Mounting.
RoHS Compliant.
Green EMC 1 Cathode 2 Anode SOD-123FL 1.6±0.1 0.6±0.1 2.6±0.1 3.5±0.2 Diodes Unit:mm 0.1+0.1 -0.05 0.9±0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Power Dissipation Junction Temperature Operating Temperature Range Storage Temperature range Symbol PD TJ TOPR Tstg Rating 500.
