DSR1J, DSR1A - General Purpose Rectifier

Kexin

📥 Download Datasheet

DSR1J Datasheet Preview — This datasheet PDF includes multiple part numbers: DSR1J, DSR1A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DSR1J, DSR1A
Manufacturer	Kexin
File Size	155.57 KB
Description	General Purpose Rectifier
Datasheet	DSR1A-Kexin.pdf
Note	This datasheet PDF includes multiple part numbers: DSR1J, DSR1A. Please refer to the document for exact specifications by model.

DSR1J Product details

Description

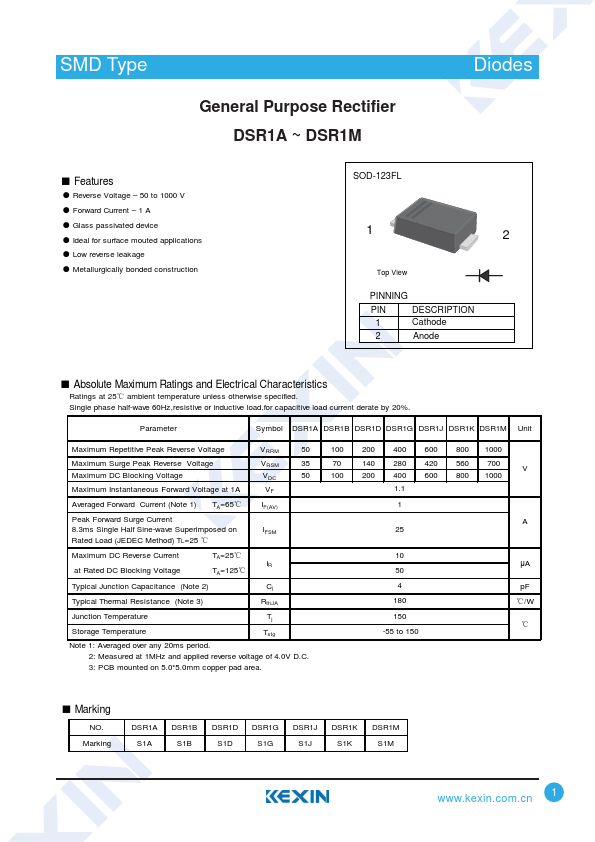

1 Cathode 2 Anode Ƶ Absolute Maximum Ratings and Electrical Characteristics Ratings at 25ć ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.Parameter Symbol DSR1A DSR1B DSR1D DSR1G DSR1J DSR1K DSR1M Unit Maximum Repetitive Peak Reverse Voltage VRRM 50 Maximum Surge Peak Reverse Voltage Maximum DC Blocking Voltage VRSM 35 VDC 50 Maximum Instantaneous Forward Voltage at 1A VF Average

Features

ƽ Reverse Voltage.
50 to 1000 V ƽ Forward Current.
1 A ƽ Glass passivated device ƽ Ideal for surface mouted.
