KM1Z9V1, KM1Z2V0, Zener Diodes

SMD Type Transistors Zener Diodes MM1Z2V0~MM1Z75 (KM1Z2V0~KM1Z75) * .

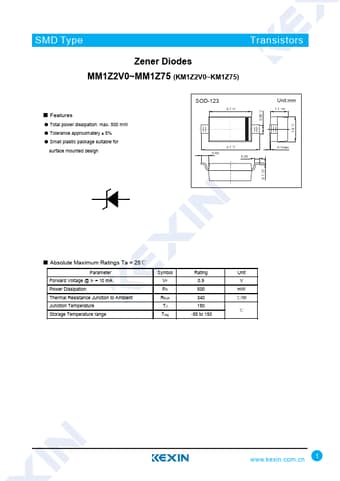

datasheet Preview Page 1 from Datasheet4u.com

KM1Z2V0-Kexin.pdf

KM1Z9V1 Datasheet Preview — This datasheet PDF includes multiple part numbers: KM1Z9V1, KM1Z2V0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KM1Z9V1, KM1Z2V0

Manufacturer:

Kexin

File Size:

915.83 KB

Description:

Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: KM1Z9V1, KM1Z2V0.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation: max. 500 mW
* Tolerance approximately ± 5%
* Small plastic package suitable for surface mounted design SOD-123 2.7 +0.1 - 0.1 Unit:mm 1.1 +0.05 - 0.05 +0.1 0.55 - 0.1 +0.1 1.6 - 0.1 0.50 3.7 +0.1 - 0.1 0.35 0.1max +0.05 0.1 -0.02
* Absolute Maximum
