KRLML0100 - N-Channel MOSFET

Name: KRLML0100
SKU: KRLML0100-1315597

Kexin

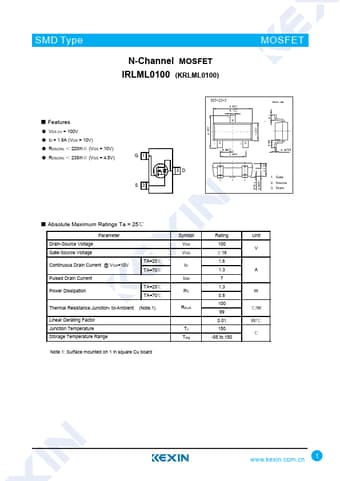

The KRLML0100 by Kexin is a N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	KRLML0100
Manufacturer	Kexin
File Size	1.87 MB
Description	N-Channel MOSFET
Datasheet	KRLML0100-Kexin.pdf
Additional preview pages of the KRLML0100 datasheet.

s.
VDS (V) = 100V.
ID = 1.6A (VGS = 10V).
RDS(ON) ＜ 220mΩ (VGS = 10V).
RDS(ON) ＜ 235mΩ (VGS = 4.5V) G1 S2 3D +0.22.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.2 0-0.1 +0.10.68 -0.1 +0.21.1 -0.1 +0.21.6 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain.
Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current @ VGS=10V Pulsed Drain Current Power Dissipation TA.
