MMSZ2V2B, MMSZ2V0B - Zener Diodes

Kexin

📥 Download Datasheet

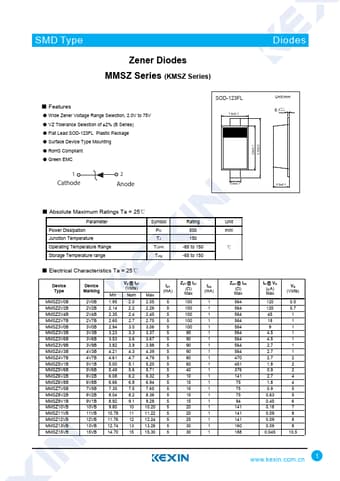

MMSZ2V2B Datasheet Preview — This datasheet PDF includes multiple part numbers: MMSZ2V2B, MMSZ2V0B. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MMSZ2V2B, MMSZ2V0B
Manufacturer	Kexin
File Size	1.16 MB
Description	Zener Diodes
Datasheet	MMSZ2V0B-Kexin.pdf
Note	This datasheet PDF includes multiple part numbers: MMSZ2V2B, MMSZ2V0B. Please refer to the document for exact specifications by model.

MMSZ2V2B Product details

Features

s.
Wide Zener Voltage Range Selection, 2.0V to 75V.
VZ Tolerance Selection of ±2% (B Series).
Flat Lead SOD-123FL Plastic Package.
Surface Device Type Mounting.
RoHS Compliant.
Green EMC 1 Cathode 2 Anode SOD-123FL 1.6±0.1 0.6±0.1 2.6±0.1 3.5±0.2 Diodes Unit:mm 0.1+0.1 -0.05 0.9±0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Power Dissipation Junction Temperature Operating Temperature Range Storage Temperature range Symbol PD TJ TOPR Tstg Rating 500.
