MP2307 - Step-Down Converter

Datasheet Summary

Features

  • s.
  • 3A Continuous Output Current, 4A Peak Output Current.
  • Wide 4.75V to 23V Operating Input Range.
  • Integrated 100mΩ Power MOSFET Switches.
  • Output Adjustable from 0.925V to 20V.
  • Up to 95% Efficiency.
  • Programmable Soft-Start.
  • Stable with Low ESR Ceramic Output Capacitors.
  • Fixed 340KHz Frequency.
  • Cycle-by-Cycle Over Current Protection.
  • Input Under Voltage Lockout SOP-8.
  • Functional Block Diagram FB 5 +.

📥 Download Datasheet

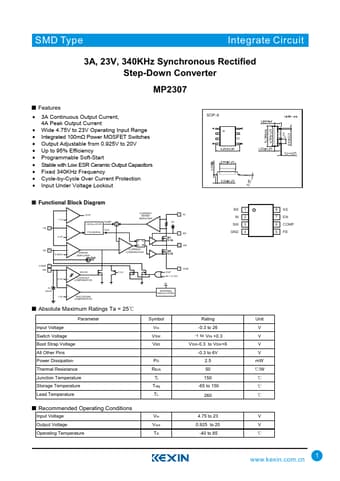

Datasheet preview – MP2307

Datasheet Details

Part number MP2307
Manufacturer Kexin
File Size 1.04 MB
Description Step-Down Converter
Datasheet download datasheet MP2307 Datasheet
Additional preview pages of the MP2307 datasheet.

📁 Similar Datasheet

  • MP2307 - Synchronous Rectified Step-Down Converter (MPS)
  • MP2307DN - Synchronous Rectified Step-Down Converter (MPS)
  • MP230 - POWER OPERATIONAL AMPLIFIER (Apex Microtechnology)
  • MP2303 - 340KHz Synchronous Rectified Step-Down Converter (MPS)
  • MP2303A - Synchronous Rectified Step-Down Converter (MPS)
  • MP2303ADN - Synchronous Rectified Step-Down Converter (MPS)
  • MP2303ADP - Synchronous Rectified Step-Down Converter (MPS)
  • MP2303DN - 340KHz Synchronous Rectified Step-Down Converter (MPS)
  • MP2303DQ - 340KHz Synchronous Rectified Step-Down Converter (MPS)
  • MP2305 - 23V Synchronous Rectified Step-Down Converter (MPS)
Other Datasheets by Kexin

    Full PDF Text Transcription

    Click to expand full text
    SMD Type Integrate Circuit 3A, 23V, 340KHz Synchronous Rectified Step-Down Converter MP2307 ■ Features • 3A Continuous Output Current, 4A Peak Output Current • Wide 4.75V to 23V Operating Input Range • Integrated 100mΩ Power MOSFET Switches • Output Adjustable from 0.925V to 20V • Up to 95% Efficiency • Programmable Soft-Start • Stable with Low ESR Ceramic Output Capacitors • Fixed 340KHz Frequency • Cycle-by-Cycle Over Current Protection • Input Under Voltage Lockout SOP-8 ■ Functional Block Diagram FB 5 + 1.1V -- + 0.3V -- OVP RAMP OSCILLATOR CLK 110/340KHz SS 8 0.925V -+ + ERROR AMPLIFIER CURRENT SENSE AMPLIFIER + -- -- S Q RQ + CURRENT COMPARATOR 2 IN 5V 1 BS 3 SW BS IN SW GND 1 2 3 4 COMP 6 EN 7 7V Zener -2.5V + + 1.
