PS2561-2, PS2561-1 - Photocoupler

Kexin

Datasheet Details

Part number	PS2561-2, PS2561-1
Manufacturer	Kexin
File Size	83.52 KB
Description	Photocoupler
Datasheet	PS2561-1-Kexin.pdf
Note	This datasheet PDF includes multiple part numbers: PS2561-2, PS2561-1. Please refer to the document for exact specifications by model.

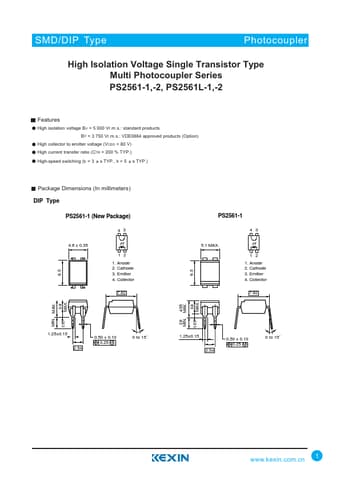

High isolation voltage BV = 5 000 Vr. m. s. : standard products BV = 3 750 Vr. m. s. : VDE0884 approved products (Option) High collector to emitter voltage (VCEO = 80 V) High current transfer ratio (CTR = 200 % TYP. ) High-speed switching (tr = 3 s TYP. , tf = 5 s TYP. ) Package Dimensions (In millimeters) DIP Type PS2561-1 (New Package) 43 4.6 ± 0.35 12 1. Anode 2. Cathode 3. Emitter 4. Collector 7.62 6.5 6.5 PS2561-1 43 5.1 MAX. 12 1. Anode 2. Cathode 3. Emitter 4. Collector 7.62 3.8 MAX. 2.
