RLZ - Zener Diodes

Kexin

📥 Download Datasheet

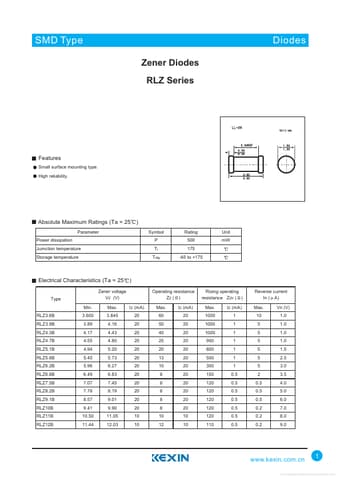

RLZ Datasheet Preview — Preview of RLZ PDF

datasheet Preview Page 2

Datasheet Details

Part number	RLZ
Manufacturer	Kexin
File Size	57.16 KB
Description	Zener Diodes
Datasheet	RLZ_Kexin.pdf

RLZ Product details

Features

Small surface mounting type. High reliability. Absolute Maximum Ratings (Ta = 25 ) Parameter Power dissipation Jumction temperature Storage temperature Symbol P Tj Tstg Rating 500 175 -65 to +175 Unit mW Electrical Characteristics (Ta = 25 ) Type Min. RLZ3.6B RLZ3.9B RLZ4.3B RLZ4.7B RLZ5.1B RLZ5.6B RLZ6.2B RLZ6.8B RLZ7.5B RLZ8.2B RLZ9.1B RLZ10B RLZ11B RLZ12B 3.600 3.89 4.17 4.55 4.94 5.45 5.96 6.49 7.07 7.78 8.57 9.41 10.50 11.44 Zener voltage VZ (V) Max. 3.845 4.16 4.43 4.80 5.20 5.73 6.27 6.
