Datasheet Details
- Part number
- S3BBF
- Manufacturer
- Kexin
- File Size
- 198.69 KB
- Datasheet
- S3BBF-Kexin.pdf
- Description
- Rectifier Diodes

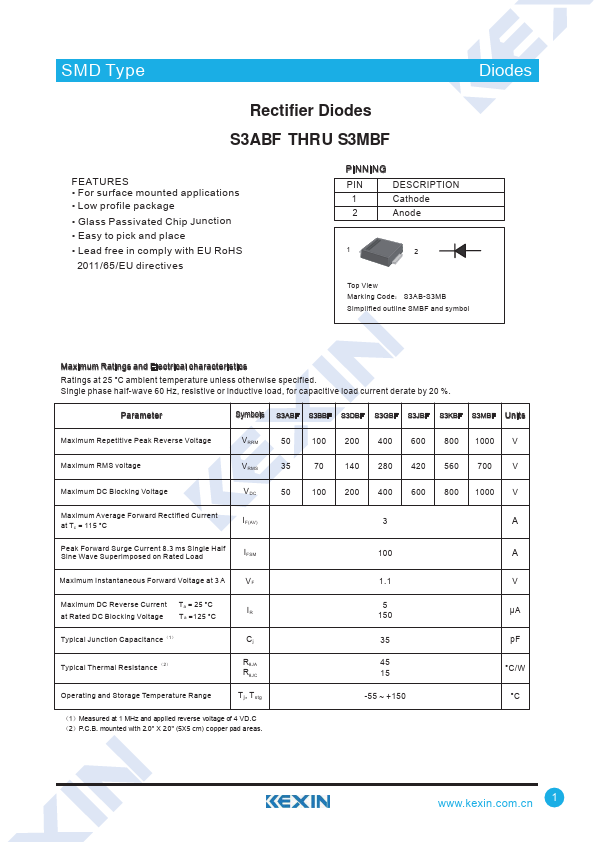

1 Cathode 2 Anode 1 2 Top View Marking Code˖ S3AB-S3MB Simplified outline SMBF and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter Symbols S3ABF S3BBF S3DBF S3GBF S3JBF S3KBF S3MBF Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140.
