SK35, SK32 - Schottky Diodes

SK35 Description

SMD Type Schottky Diodes SK32 ~ SK310 Diodes * .

SK35 Applications

* Extremely Low Thermal Resistance
* Easy Pick And Place
* High Temp Soldering: 250°C for 10 Seconds At Terminals
* High Current Capability With Low Forward Voltage DO-214AB(SMC) 3.250 2.743 2 7.112 6.604 6.223 3.27 1 5.588 3.07 Unit: mm 6.18 5.98 8.128 7.747 2.616 2.007 4.69

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SK35, SK32. Please refer to the document for exact specifications by model.

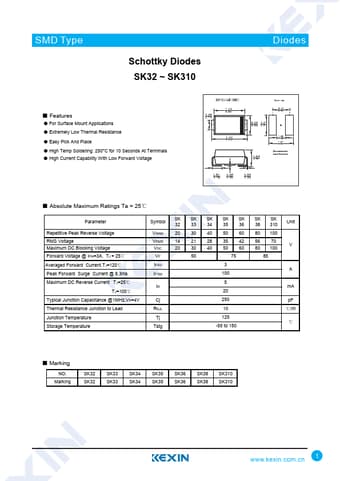

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK35, SK32
Manufacturer
Kexin
File Size
534.42 KB
Datasheet
SK32-Kexin.pdf
Description
Schottky Diodes
Note
This datasheet PDF includes multiple part numbers: SK35, SK32.
Please refer to the document for exact specifications by model.
