US1DF - Ultra Fast Recovery Diodes

This page provides the datasheet information for the US1DF, a member of the US1AF Ultra Fast Recovery Diodes family.

Description

1 Cathode 2 Anode Absolute Maximum Ratings Ta = 25℃ Parameter Repetitive Peak Reverse Voltage RMS Voltage Maximum DC Blocking Voltage Averaged Forward Current.TL=110℃ Peak Forward Surge Current @ 8.3ms Thermal Resistance Junction to Ambient Junction Temperature Operating Temperature Storage

Features

  • s.
  • Glass Passivated Chip.
  • Low Forward Voltage Drop And High Current Capability.
  • Low Reverse Leakage Current.
  • Epoxy meets UL 94 V-0 flammability rating.
  • Ultra Fast Switching For High Efficiency 12 Top View.

📥 Download Datasheet

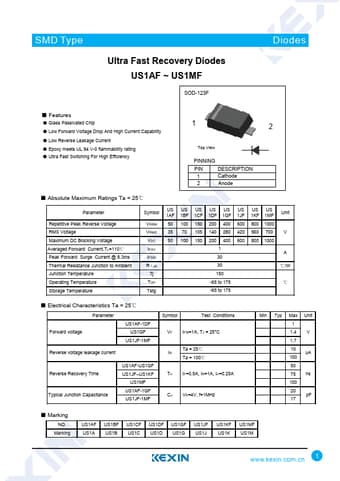

Datasheet preview – US1DF

Datasheet Details

Part number US1DF
Manufacturer Kexin
File Size 1.22 MB
Description Ultra Fast Recovery Diodes
Datasheet download datasheet US1DF Datasheet
Additional preview pages of the US1DF datasheet.
