1GC1-4298

DC - 26.5 GHz Packaged Gilbert-Cell Mixer

1GC1-4298 Features

* DC to 26.5 GHz on RF and LO

* DC to 1 GHz IF

* Low conversion loss:

* 4 dB typical

* High +9 input P dBm @ 1-10dBG: Hz +2 dBm @ 20 GHz

* Single-supply operation:

* Vsupply =

* 7 V

1GC1-4298 General Description

The 1GC1-4298 offers substantially improved frequency range and improved broadband performance in a Gilbert

*cell mixer. The 1GC1-4298 can be utilized as a fundamental, 3rd, 5th, or 7th order harmonic mixer. The mixer is fabricated using Keysight Technologies, Inc. GaAs HBT process, which p.

1GC1-4298 Datasheet (2.18 MB)

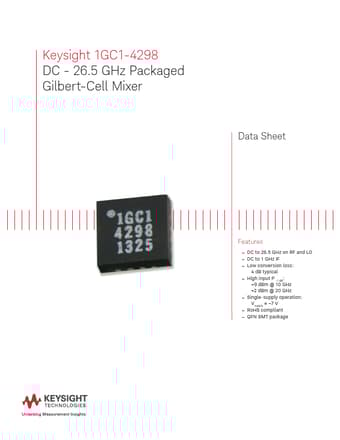

Preview of 1GC1-4298 PDF

Datasheet Details

Part number:

1GC1-4298

Manufacturer:

Keysight

File Size:

2.18 MB

Description:

Dc - 26.5 ghz packaged gilbert-cell mixer.
