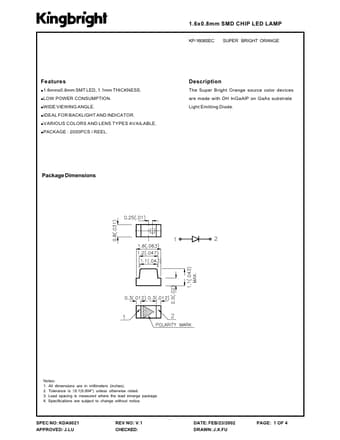

KP-1608SEC
Features
!1.6mmx0.8mm SMT LED, 1.1mm THICKNESS. !LOW
Description
The Super Bright Orange source color devices are made with DH In Ga Al P on Ga As substrate Light Emitting Diode.
POWER CONSUMPTION.
!WIDE VIEWING ANGLE. !IDEAL FOR BACKLIGHT AND INDICATOR. ! VARIOUS !PACKAGE
COLORS AND LENS TYPES AVAILABLE. : 2000PCS / REEL.
Package Dimensions
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject to change without notice.
D i g i t a l l y s i g n e d b y Y A N G S H O U F E N c n = Y A N G S H O U F E N , o u = K I N G B R I H G T , o = 4 2 , c = U S D a t e : 2 0 0 2 . 0 2 . 2 3 1 6 : 3 1 : 5 7 + 0 8 '0 0 'R e a s o n : D o c u m e n t i s c e r t i f i e d
SPEC NO: KDA0021 APPROVED: J.LU
REV NO: V.1 CHECKED:
DATE: FEB/23/2002 DRAWN: J.X.FU
PAGE: 1 OF 4
Selection Guide
Par t No . Di c e L en s Ty p e Iv (mc d ) @ 20 m A Min . KP-1608SEC...
