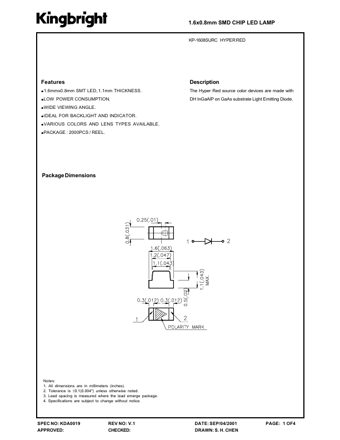

KP-1608SURC
Features
! 1.6mmx0.8mm !LOW ! WIDE ! IDEAL
Description
SMT LED, 1.1mm THICKNESS. The Hyper Red source color devices are made with DH In Ga Al P on Ga As substrate Light Emitting Diode.
POWER CONSUMPTION. VIEWING ANGLE. FOR BACKLIGHT AND INDICATOR. COLORS AND LENS TYPES AVAILABLE.
! VARIOUS
!PACKAGE : 2000PCS / REEL.
Package Dimensions
Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3. Lead spacing is measured where the lead emerge package. 4. Specifications are subject to change without notice.
SPEC NO: KDA0019 APPROVED:
REV NO: V.1 CHECKED:
DATE: SEP/04/2001 DRAWN: S. H. CHEN
PAGE: 1 OF4
Selection Guide
Par t No . Di c e L en s Ty p e Iv (mc d ) @ 20 m A Min . KP-1608SURC HYPER RED( In Ga Al P ) WATER CLEAR 70 Ty p . 150 View in g An g l e 2θ1/2 120°
Note: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T)=25°C
Sy m b o...
