TBA23-12EGWA - 58mm (2.3INCH) 8x8 DOT MATRIX DISPLAY

TBA23-12EGWA Description

( DataSheet : www.DataSheet4U.com ) 58mm (2.3 INCH) 8x8 DOT MATRIX DISPLAY TBA23-12EGWA HIGH EFFICIENCY RED GREEN .
The High Efficiency Red source color devices are made With Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode.

TBA23-12EGWA Features

* 2.3 INCH MATRIX HEIGHT. DOT SIZE 5mm. LOW CURRENT OPERATION. HIGH CONTRAST AND LIGHT OUTPUT. COMPATIBLE WITH ASCII AND EBCDIC CODES. STACKABLE HORIZONTALLY. EASY MOUNTING ON P. C. BOARDS OR SOCKETS. MULTICOLOR AVAILABLE. MECHANICALLY RUGGED. STANDARD : GRAY FACE, WHITE DOT. RoHS COMPLIANT. Descripti

📥 Download Datasheet

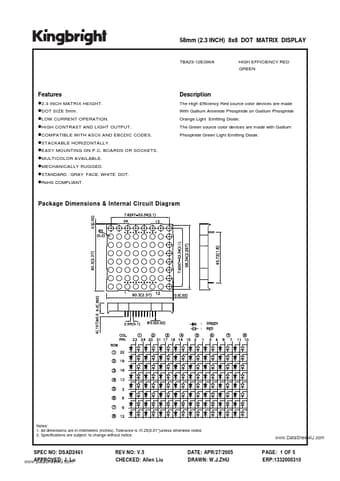

Preview of TBA23-12EGWA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TBA23-12EGWA
Manufacturer
Kingbright Corporation
File Size
211.12 KB
Datasheet
TBA23-12EGWA_KingbrightCorporation.pdf
Description
58mm (2.3INCH) 8x8 DOT MATRIX DISPLAY
